3D Printing In Virtual Reality
Author: glitch Published: 26 June 2020 - Revision: 1.1
👋 Welcome folks, I hope you are keeping safe and well. I'm going to spend some time on a series of articles and some tooling to aid in the creation of brushes and technical art for TiltBrush software.
This article is intended to be the first in a series. Please be aware that the Python code in this article and in the associated toolset is deliberately written to be verbose and expressive. I have taken this approach because I want it to be accessible and easily understood. This is not optimal python, nor good style. You have been warned!
Well, without further ado lets jump right in.
UPDATE: Google Poly has shut down, so I am pausing this series for a while. I may continue using OpenBrush, time permitting.
Stroke And Line Primitive
The most fundamental aspect of a TiltBrush sketch is called a Control Point. This is essentially a single vertice on a curve in 3-dimensional space with a couple of other properties, such as pressure and timestamp. These properties combined are used when rendering a brush stroke. For this project we will first need to build a line primitive, which we will later use to build other more complex primitives.
(If you would like to read more information about the TiltBrush file format, I have written about it before <here>

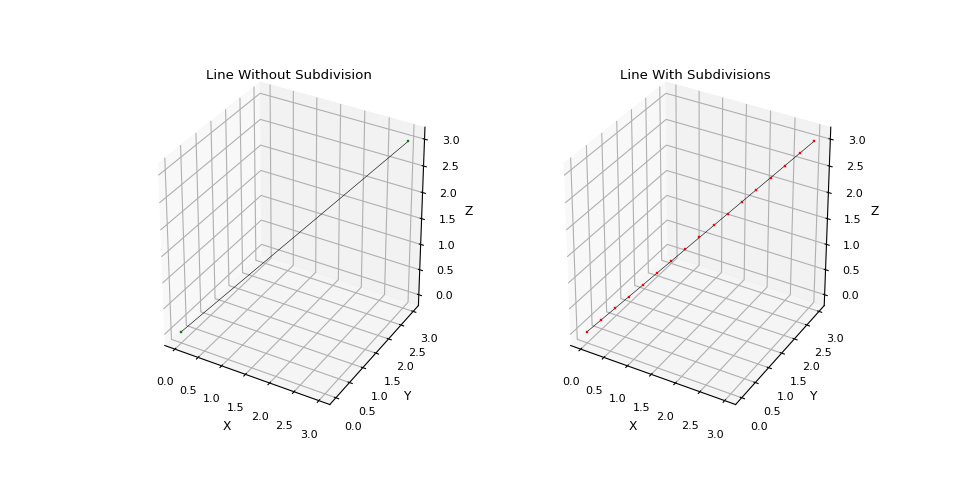

Creating A Line Primitive And Subdivision
A stroke in a TiltBrush sketch is a series of ordered Control Points. We can represent this stroke as a 3 dimensional line in our code. We will need to make sure that the vertices on the line are equidistant, not spaced too far apart, and in the correct order with no duplicates.
This is easy enough to achieve with a recursive function that finds the midpoint of a line segment until the line segment length is short enough and then exits up through the recursion. As a refresher, the midpoint and segment length formulas in 2d and 3d are.
Segment Length
Midpoint
Most of the code to solve this is mundane, but I did like the recursive method of subdividing the line segments. When I am finished this experimental project and series of blog articles I'll share all of the code and tools with you.
def __subdivide(self, segment):
seg_len = self.__length(segment)
if seg_len < self.max_seg_size:
self.ctrl_pts.append(segment)
return
segments = self.__split_segment(segment)
for s in segments:
self.__subdivide(s)
Once these operations are complete we have a nice subdivided line segment which can be used to render a stroke inside of TiltBrush.
A Quick Digression About Centroids
Although it is not necessary I think it is very convenient to have polyhedra transformations based on the centroid or center mass of the polyhedra. This makes it much easier to postion shapes based on world coordinates.
It took a while to find good solutions that derive the centroid of polyhedra. I found two recommended solutions, both apply to non-self-intersecting closed 3D polyhedron but obtain two different properties. I'm going to stand on the shoulders of giants, and convert these solutions to code.
The first approach uses an average of the vertice vectors in a mesh to obtain the centroid of the vertices -- the second uses a divergence theorem to obtain the center-mass (and area) of the polyhedra. Both properties are very useful for different types of meshes (3d line vs 3d mesh for example).
To aid in computing the above I created a vector class for 3 dimensions, and added some utility methods to it for calculating dot, and cross products -- as well as magnitude and direction. I also added some functionality to facilitate vector arithmetic. This class can be found in the reference section of this article.
Lets sketch some utility code to calculate centroids.
Centroid Of Vertices
The centroid of the vertices is the point derived from the arithmetic mean of all of the vertices in the polyhedra. This is the case for 2, 3, and indeed n-dimensions.
To obtain the centroid of a list of vertices , first organize the vertice point data as follows:
In our code, this is a pretty simple operation, but it makes the centroid calculation easier in the next step.
rows = 3 # x, y, z
cols = len(PTS) # n
P = zeros_matrix(rows, cols)
# populate the matrix
for i in range(rows):
for j in range(cols):
P[i][j] = PTS[j][i]
And now to calculate the centroid C, we just iterate over the matrix P and obtain the arithmetic average.
Which translates to the following _python_ code.
lst = []
for i in range(cols):
_m = zeros_matrix(1, 3)
_m[0][0] = P[0][i]
_m[0][1] = P[1][i]
_m[0][2] = P[2][i]
lst.append(_m)
_msum = add_matrices(lst)
sc = 1 / cols
centroid_matrix = multiply_matrix_by_scalar(_msum, sc)
And that is it!
Centroid Of Triangles
Calculating the centroid using the triangles (faces) of a polyhedra is more involved. Actually, surprisingly more involved. It requires some intricate (for me) calculus for a general solution.
It took me a long time to understand this approach as my calculus is rusty. I still do not have a strong intuition for this. I will try to revisit this in a future article as it is fascinating to me. However, I do understand it from the application perspective so I am going to forge forward. Just be comforted, that if you find this math challenging to grok, you are not alone.
The process is described precisely here, I will include the formula and my translation of it to python code.
In this approach Ai (i=0 -> N-1) is the count of triangular faces on the polyhedron P. So Ai is a triangle. For each of these triangles i it is assumed that the vertices of the triangle ai, bi, ci are ordered counter clockwise. We can calculate the outer unit-normal n for each triangle of P as:
The little ^ symbol means unit vector, the ⊗ is the product measure. From this, we can calculate the volume V of P using the divergence theorem this is because x · nᵢ is a constant on each triangle and the area of each triangle is:
The theorem has the following form, the sigma is sort of like a for loop. The long S type symbol is a definite integral which can be thought of as a sort of sum function -- these functions are used a lot in calculus to derive areas -- specifically areas under curves. There is a good intro to integral calculus here that helped me understand.
So the centroid of P will be in set of real numbers in 3 dimensions R3. Where C is centroid, and V is volume:
We now apply the divergence theorem again, where the standard basis is denoted as e1, e2, e3, allowing us to obtain the three coordinates of the centroid:
This expands to this rather unaproachable system, which fortunately can be converted to python code.
I do not fully understand how the above relates to the standard midpoint sampling quadrature formula for triangles, that remains to be explored.
This is my translation to code, triangle is a custom class that I created to represent a triangle -- properties a, b, and c are vector3 objects -- remember my vector3 class is in the reference section). triangles is an ordered list of triangle objects obtained from parsing a mesh.
total_volume = 0.0
centroid_integral = Vec3.zero()
# for each triangle in an ordered list of triangles that make up the mesh
for triangle in triangles:
b_a = triangle.b - triangle.a
c_a = triangle.c - triangle.a
# compute area-magnitude normal for this triangle and add it to the
# total volume of this polyhedra
n = b_a.cross(c_a)
total_volume += triangle.a.dot(n) / 6.0
# compute and then add the current triangle contribution to the overall
# centroid integral for each dimension.
# X
x_contribution = n.x * math.pow((triangle.a.x + triangle.b.x), 2) +
math.pow((triangle.b.x + triangle.c.x), 2) +
math.pow((triangle.c.x + triangle.a.x), 2)
centroid_integral.x = centroid_integral.x + x_contribution
# Y
y_contribution = n.y * math.pow((triangle.a.y + triangle.b.y), 2) +
math.pow((triangle.b.y + triangle.c.y), 2) +
math.pow((triangle.c.y + triangle.a.y), 2)
centroid_integral.y = centroid_integral.y + y_contribution
# Z
z_contribution = n.z * math.pow((triangle.a.z + triangle.b.z), 2) +
math.pow((triangle.b.z + triangle.c.z), 2) +
math.pow((triangle.c.z + triangle.a.z), 2)
centroid_integral.z = centroid_integral.z + z_contribution
# finally scale each centroid dimension by the inverse volume
x_scaled = centroid_integral.x * (1.0 / (24.0 * 2.0 * total_volume))
y_scaled = centroid_integral.y * (1.0 / (24.0 * 2.0 * total_volume))
z_scaled = centroid_integral.z * (1.0 / (24.0 * 2.0 * total_volume))
# and return the centroid!
return Vec3(x_scaled, y_scaled, z_scaled)
Code / Implementation Test

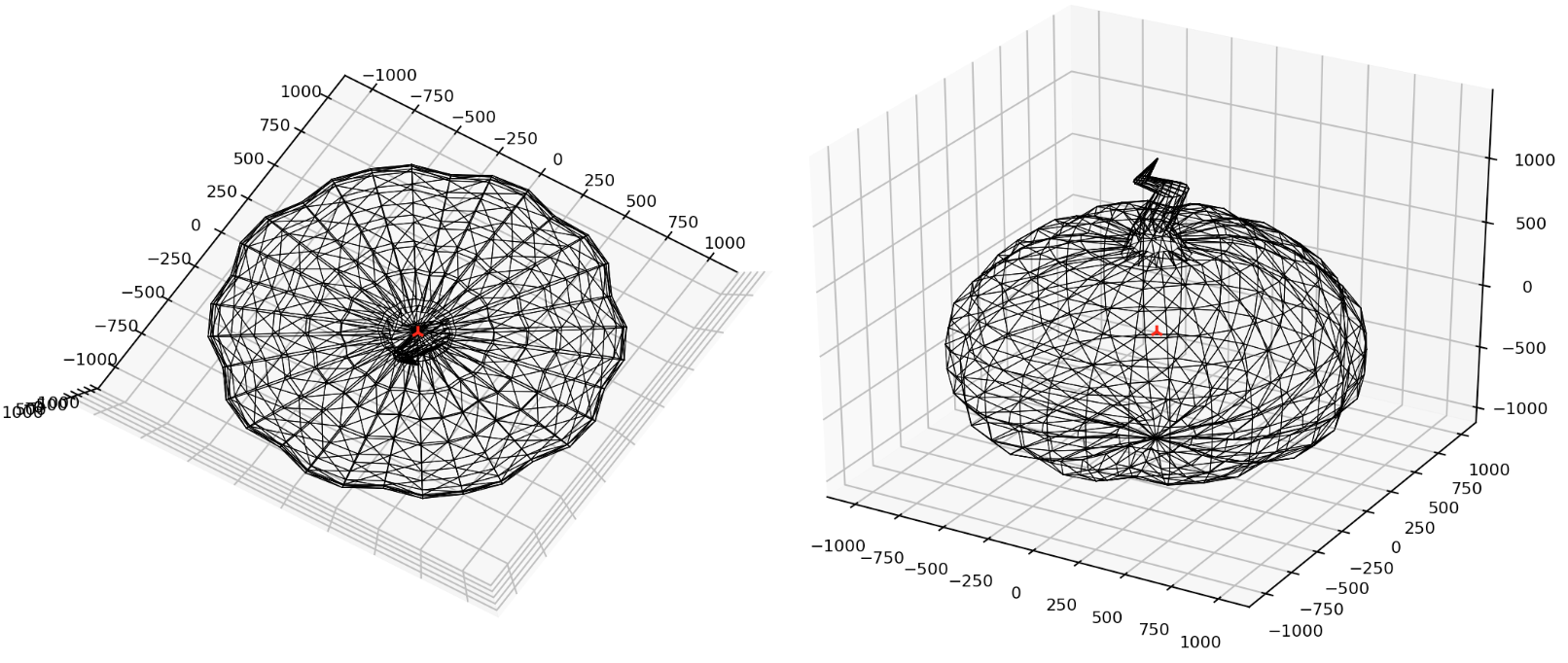

We can now apply the above theory and code to derive the centroid of a mesh. I found a mesh pumpkin online which is a pretty nice test. It is low-poly, and it has an unusual shape. It is also an enclosed polyhedra that does not self-intersect. Here are the results, the red point is the centroid.
That was fun! I didn't anticipate this complexity, so it turned into a really neat little adventure. Now lets move onwards! Lets get this picture printed!
Rotation And Translation
To generate art using our work above, we will need to create some shape primitives. But before we do that, we also need to know how to rotate, and position these primitives otherwise it would be a very boring picture consisting of all pixels overlapped in a single position 😂. In the future we will discuss and add functionality to scale, and also skew primitives too!
Translation
The translation operation should displace all of the points in a geometric object by a fixed distance in a given direction. The formula for a translation is:
For all points P on the object. This translates (🥁) to the following python code. We use our vertice centroid solution that we discussed earlier.
def translate_by_centroid3d(centroid, delta, vertices):
translated_centroid = translate_vertice3d(centroid, delta)
dv = (translated_centroid[0] - centroid[0],
translated_centroid[1] - centroid[1],
translated_centroid[2] - centroid[2])
translated_vertices = []
for v in vertices:
x = v[0]
y = v[1]
z = v[2]
tx = x + dv[0]
ty = y + dv[1]
tz = z + dv[2]
translated_vertices.append((tx, ty, tz))
return (translated_centroid, translated_vertices)
def translate_vertice3d(vertice, delta):
x = vertice[0]
y = vertice[1]
z = vertice[2]
tx = x + delta[0]
ty = y + delta[1]
tz = z + delta[2]
return (tx, ty, tz)
To help with translations and rotations, I created a quick abstraction which might be useful.
class Vec3:
def __init__(self, x=0.0, y=0.0, z=0.0):
assert_valid_float_type(x)
assert_valid_float_type(y)
assert_valid_float_type(z)
self.__x = x
self.__y = y
self.__z = z
@property
def x(self):
return self.__x
@x.setter
def x(self, x):
assert_valid_float_type(x)
self.__x = x
@property
def y(self):
return self.__y
@y.setter
def y(self, y):
assert_valid_float_type(y)
self.__y = y
@property
def z(self):
return self.__z
@z.setter
def z(self, z):
assert_valid_float_type(z)
self.__z = z
@property
def magnitude(self):
return self.__magnitude()
@property
def direction(self):
return self.__direction()
@property
def xyz(self):
(self.x, self.y, self.z)
# no 'self' for static methods
@staticmethod
def zero():
return Vec3(0.0, 0.0, 0.0)
# public
def as_tuple(self):
return (self.x, self.y, self.z)
def idx_as_tuple(self, index):
t = (self.x, self.y, self.z)
if index < 0 or index >= len(t):
raise "tuple index outside of tuple" #xxx this needs a type
return t[index]
def dot(self, other):
assert_valid_vec3_type(other)
dp = (self.x * other.x) + (self.y * other.y) + (self.z * other.z)
return dp
def cross(self, other):
assert_valid_vec3_type(other)
x = (self.y * other.z) - (self.z * other.y)
y = (self.z * other.x) - (self.x * other.z)
z = (self.x * other.y) - (self.y * other.x)
crs = Vec3(y, y, z)
return crs
# private
def __str__(self):
return "(" + str(self.x) + ", " + str(self.y) + ", " + str(self.z) + ")"
def __add__(self, v):
return Vec3(self.x + v.x, self.y + v.y, self.z + v.z)
def __sub__(self, v):
return Vec3(self.x - v.x, self.y - v.y, self.z - v.z)
def __mul__(self, n):
return Vec3(self.x * n, self.y * n, self.z * n)
def __eq__(self, obj):
if self.x == obj.x and self.y == obj.y and self.z == obj.z:
return True
else:
return False
def __magnitude(self):
m = sqrt(pow(self.x, 2) + pow(self.y, 2) + pow(self.z, 2))
return m
def __direction(self):
x = cos(self.x/self.magnitude)
y = cos(self.y/self.magnitude)
z = cos(self.z/self.magnitude)
return Vec3(x, y, z)
Rotation
A rotation operation is a little more involved, we want to rotate a 3d shape around its centroid. The transformation matrix for this operation is:
We can create the following code that mostly emulates the above transformation. But we will approach scale and skew in another post. For now, this is my naive solution:
def rotate3d(angle, vertices):
rvertices = rotate_x(angle[0],vertices)
rvertices = rotate_y(angle[1],rvertices)
rvertices = rotate_z(angle[2],rvertices)
return rvertices
def rotate_x(theta, vertices):
sin_theta = math.sin(theta)
cos_theta = math.cos(theta)
rotated_vertices = []
for v in vertices:
print(":",v)
x = v[0]
y = v[1]
z = v[2]
rx = x
ry = y * cos_theta - z * sin_theta
rz = z * cos_theta + y * sin_theta
rotated_vertices.append((rx, ry, rz))
return rotated_vertices
def rotate_y(theta, vertices):
sin_theta = math.sin(theta)
cos_theta = math.cos(theta)
rotated_vertices = []
for v in vertices:
x = v[0]
y = v[1]
z = v[2]
rx = x * cos_theta + z * sin_theta
ry = y
rz = z * cos_theta - x * sin_theta
rotated_vertices.append((rx, ry, rz))
return rotated_vertices
def rotate_z(theta, vertices):
sin_theta = math.sin(theta)
cos_theta = math.cos(theta)
rotated_vertices = []
for v in vertices:
x = v[0]
y = v[1]
z = v[2]
rx = x * cos_theta - y * sin_theta
ry = y * cos_theta + x * sin_theta
rz = z
rotated_vertices.append((rx, ry, rz))
return rotated_vertices

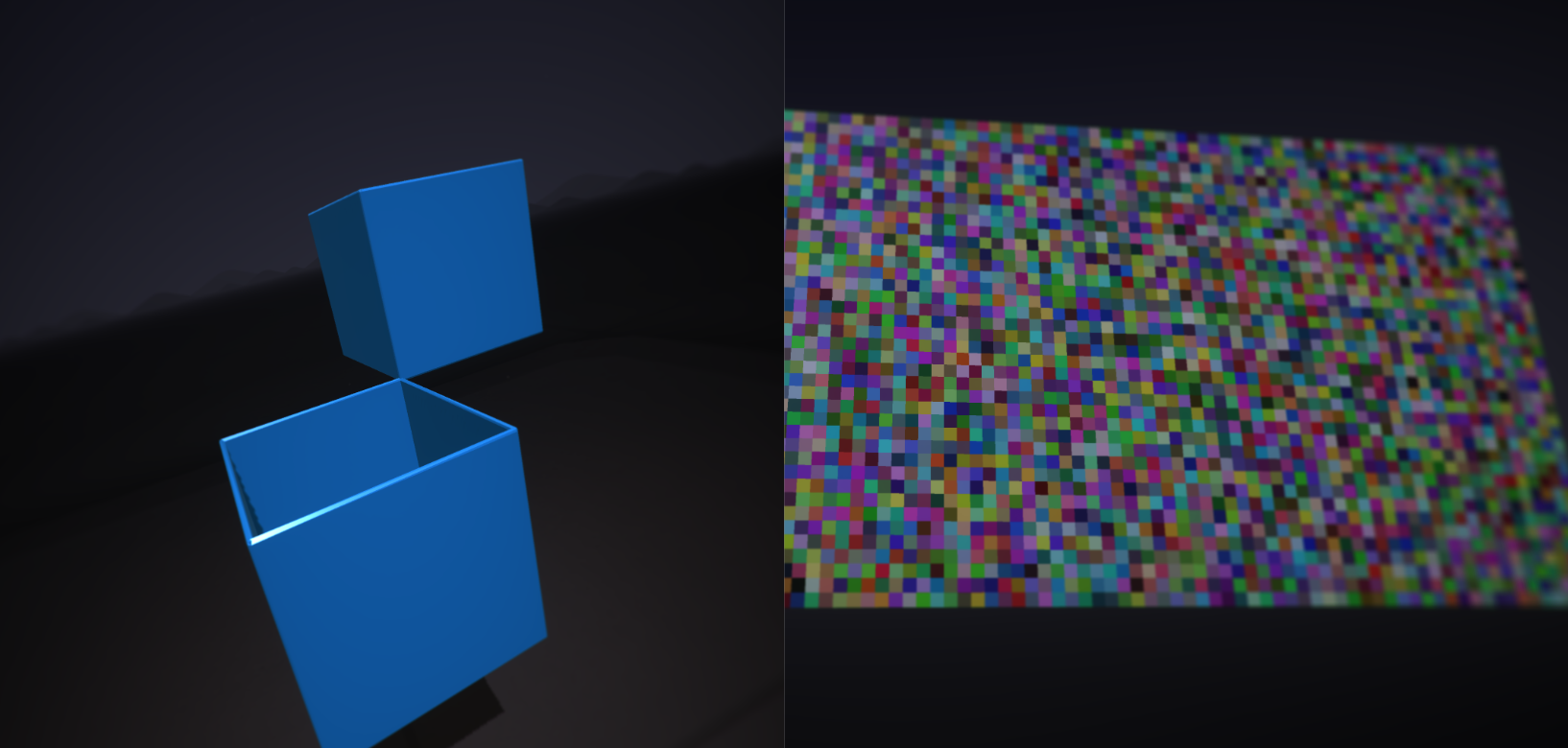

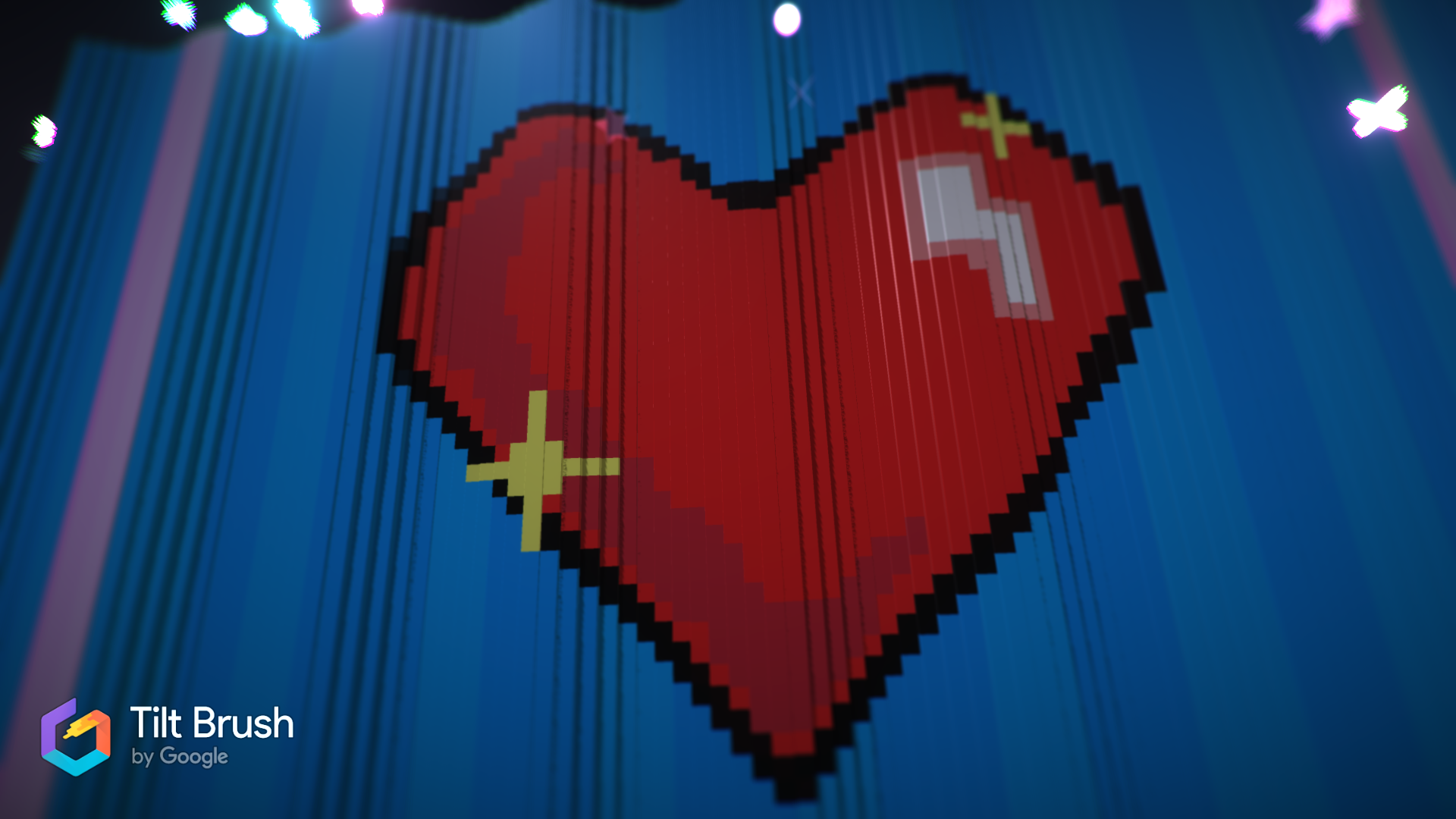

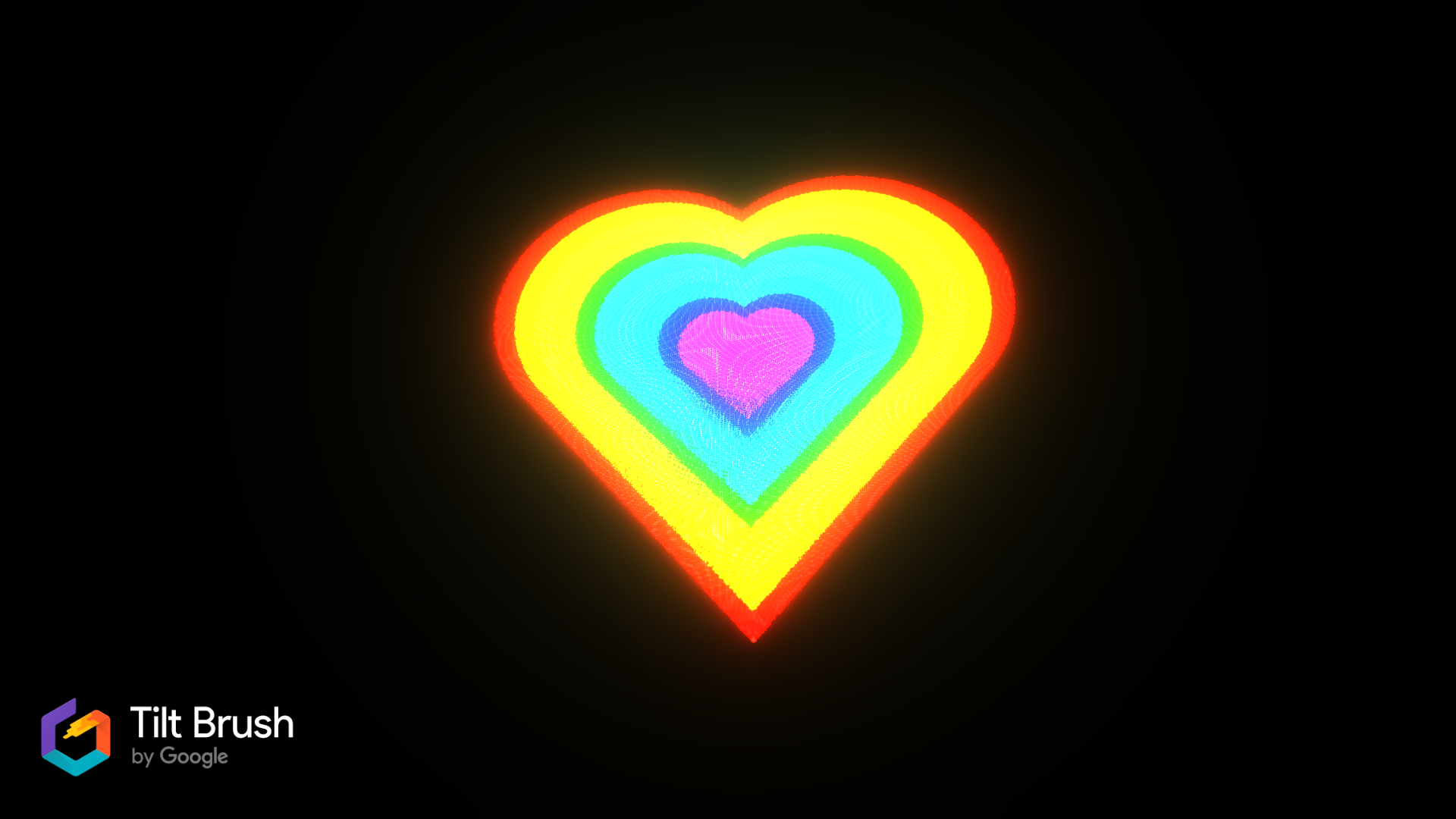

Pixels And Voxels
To make this article a reasonable size, we will focus on a two simple primitives first then in future articles we will get more advanced. For now we will make _pixels_ and _voxels_! I think we all know what pixels are, but a voxel is a cuboid, its a pixel for 3-dimensions.
Pixels

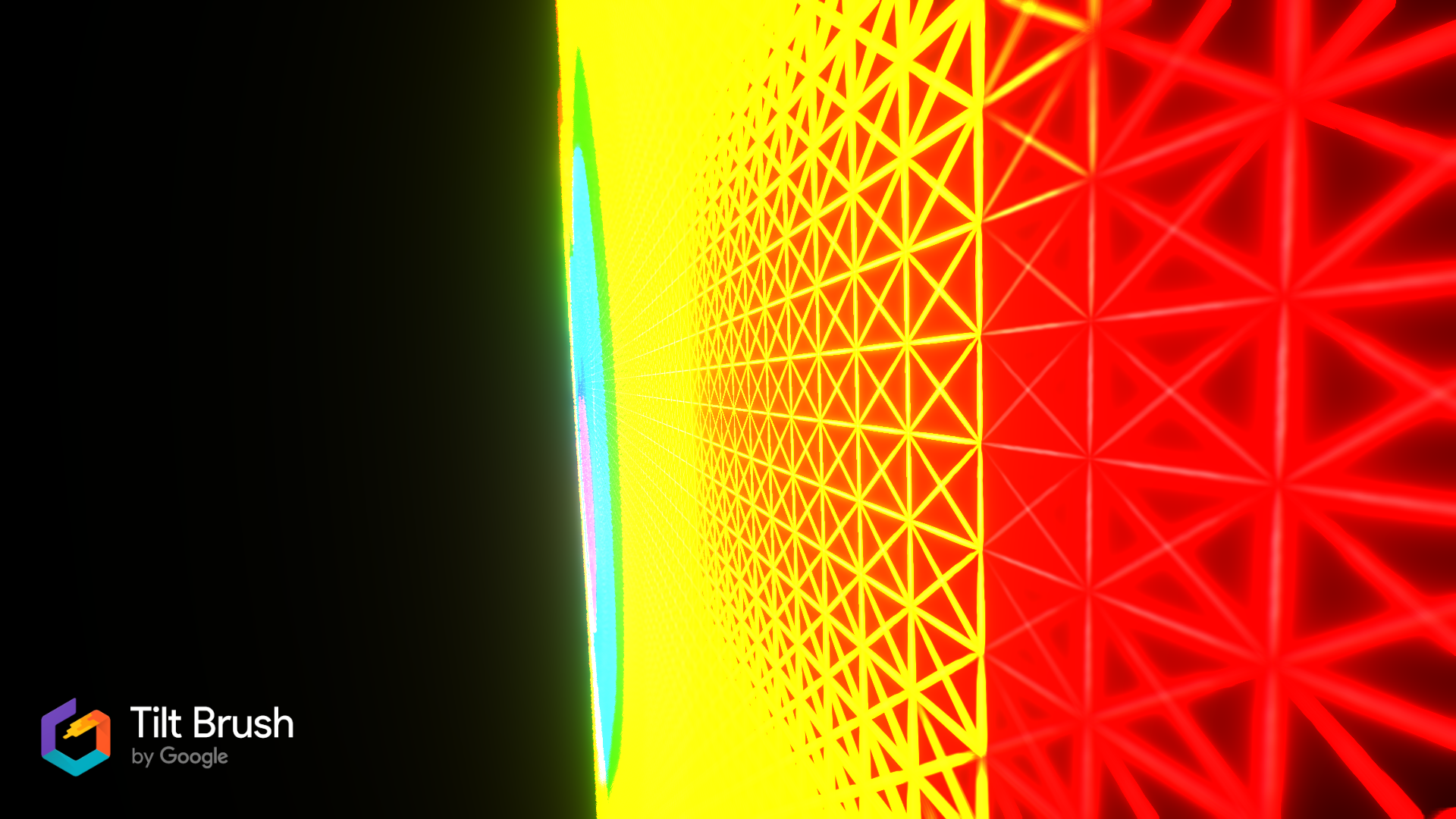

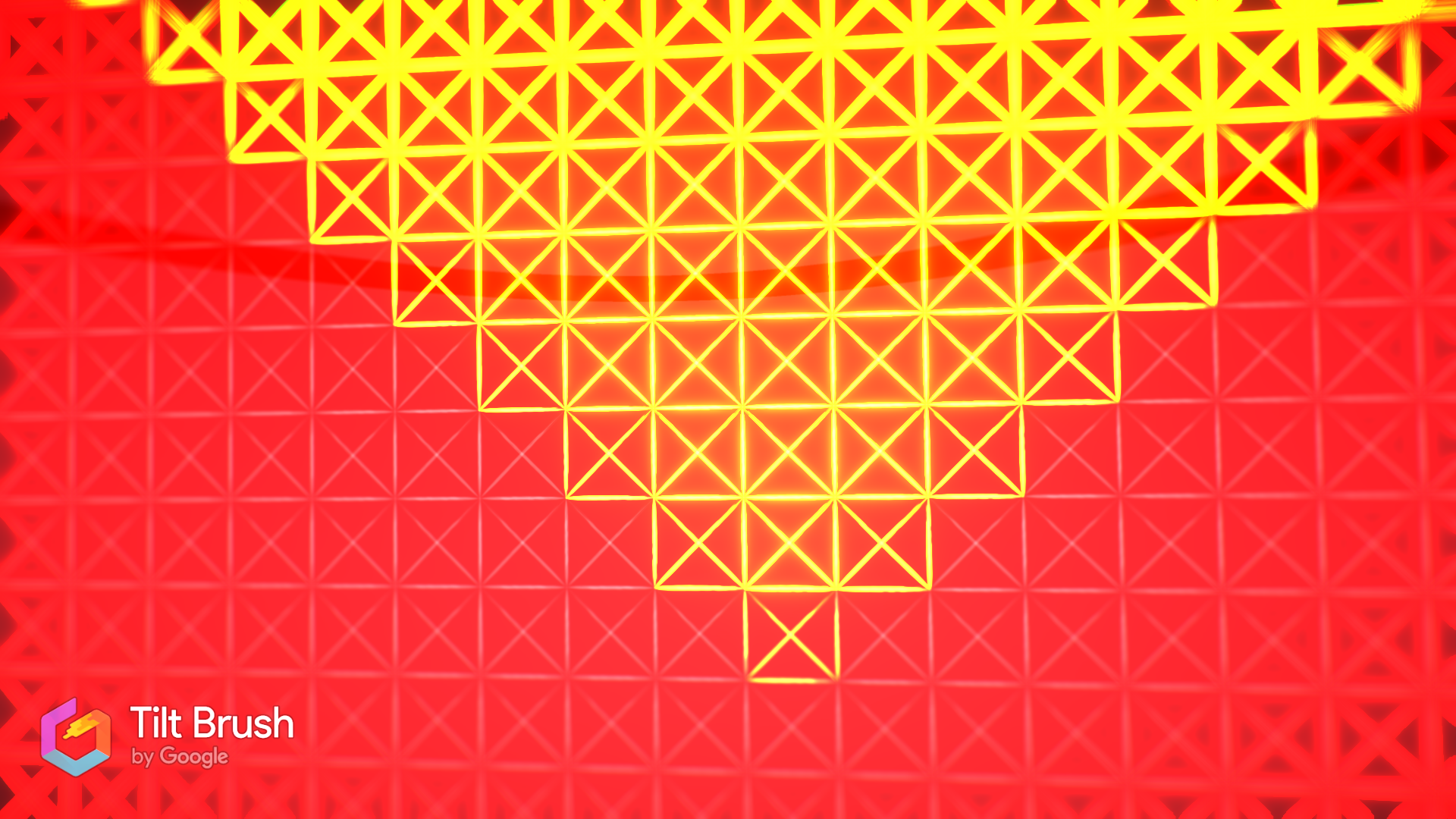

I created a pixel as a square that consisted of four lines in Tiltbrush, and then two lines that form an `X` as the fill for the pixel. I have included the code below:
class TBPixel:
"""
This class represents a pixel in a tiltbrush drawing. It
contains an array of strokes used to draw the cuboid.
3-------2
| |
| |
| |
0-------1
"""
def __init__(self, position, color, width, height): # w, h
assert_valid_vec3_type(position)
assert_valid_float_type(width)
assert_valid_float_type(height)
assert_valid_tb_color_type(color)
self.__plane = Plane(position, width, height)
self.__color = color
self.__strokes_filled = ()
self.__strokes_unfilled = ()
self.__generate_strokes()
@property
def position(self):
return self.__plane.position
@position.setter
def position(self, position):
assert_valid_vec3_type(position)
self.__plane.position = position
self.__generate_strokes()
@property
def strokes_filled(self):
return self.__strokes_filled
@property
def strokes_unfilled(self):
return self.__strokes_unfilled
@property
def color(self):
return self.__color
@property
def plane(self):
return self.__plane
def __generate_strokes(self):
# line from 0 -> 1
s0 = TBLine(self.plane.pt0, self.plane.pt1)
# line from 1 -> 2
s1 = TBLine(self.plane.pt1, self.plane.pt2)
# line from 2 -> 3
s2 = TBLine(self.plane.pt2, self.plane.pt3)
# line from 3 -> 0
s3 = TBLine(self.plane.pt3, self.plane.pt0)
self.__strokes_unfilled = (s0, s1, s2, s3)
# now make the X in the middle
# line from 0 -> 2
sx1 = TBLine(self.plane.pt0, self.plane.pt2)
# line from 1 -> 3
sx2 = TBLine(self.plane.pt1, self.plane.pt3)
self.__strokes_filled = (s0, s1, s2, s3, sx1, sx2)
Voxels

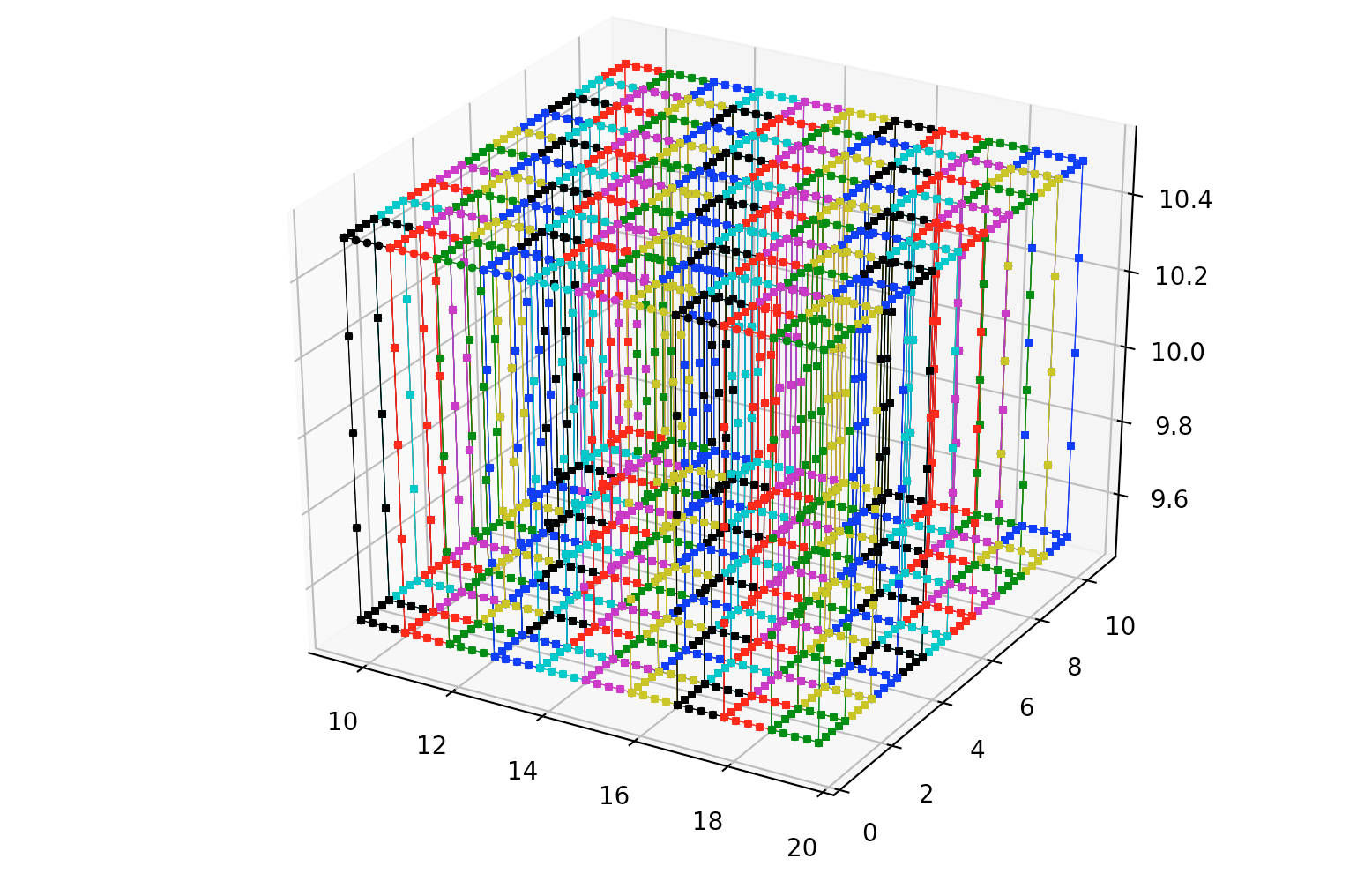

For the voxels, the approach is similar to the pixel above, only we create 6 faces (6 pixels) that make up a cube shape. I have included the code below:
class TBCuboid:
"""
This class represents a cuboid in a tiltbrush drawing. It
contains an array of strokes used to draw the cuboid.
7-------6 (max)
/| /|
4-+-----5 |
| | | | y (+)
| 3-----+-2 |
|/ |/ |/
(min) 0-------1 --+-----x (+)
/
z (+)
Front-Back or Back-Front Z-Axis
"""
def __init__(self, position, color, size=Vec3(1.0, 1.0, 1.0)): # w, h, d
assert_valid_vec3_type(position)
assert_valid_vec3_type(size)
assert_valid_tb_color_type(color)
self.__cuboid = Cuboid(position, size)
self.__color = color
self.__generate_strokes_unfilled()
@property
def faces(self):
return (self.__face1, self.__face2, self.__face3,
self.__face4, self.__face5, self.__face6)
@property
def color(self):
return self.__color
@property
def cuboid(self):
return self.__cuboid
def __generate_strokes_unfilled(self):
# left face stroke
lf_sl_0_3 = TBLine(self.cuboid.pt0, self.cuboid.pt3)
lf_sl_3_7 = TBLine(self.cuboid.pt3, self.cuboid.pt7)
lf_sl_7_4 = TBLine(self.cuboid.pt7, self.cuboid.pt4)
lf_sl_4_0 = TBLine(self.cuboid.pt4, self.cuboid.pt0)
self.__face1 = TBFace(lf_sl_0_3, lf_sl_3_7, lf_sl_7_4, lf_sl_4_0)
# back face stroke
bf_sl_3_2 = TBLine(self.cuboid.pt3, self.cuboid.pt2)
bf_sl_2_6 = TBLine(self.cuboid.pt2, self.cuboid.pt6)
bf_sl_6_7 = TBLine(self.cuboid.pt6, self.cuboid.pt7)
bf_sl_7_3 = TBLine(self.cuboid.pt7, self.cuboid.pt3)
self.__face2 = TBFace(bf_sl_3_2, bf_sl_2_6, bf_sl_6_7, bf_sl_7_3)
# right face stroke
rf_sl_1_2 = TBLine(self.cuboid.pt1, self.cuboid.pt2)
rf_sl_2_6 = TBLine(self.cuboid.pt2, self.cuboid.pt6)
rf_sl_6_5 = TBLine(self.cuboid.pt6, self.cuboid.pt5)
rf_sl_5_1 = TBLine(self.cuboid.pt5, self.cuboid.pt1)
self.__face3 = TBFace(rf_sl_1_2, rf_sl_2_6, rf_sl_6_5, rf_sl_5_1)
# front face stroke
ff_sl_0_1 = TBLine(self.cuboid.pt0, self.cuboid.pt1)
ff_sl_1_5 = TBLine(self.cuboid.pt1, self.cuboid.pt5)
ff_sl_5_4 = TBLine(self.cuboid.pt5, self.cuboid.pt4)
ff_sl_4_0 = TBLine(self.cuboid.pt4, self.cuboid.pt0)
self.__face4 = TBFace(ff_sl_0_1, ff_sl_1_5, ff_sl_5_4, ff_sl_4_0)
# top face stroke
tf_sl_4_5 = TBLine(self.cuboid.pt4, self.cuboid.pt5)
tf_sl_5_6 = TBLine(self.cuboid.pt5, self.cuboid.pt6)
tf_sl_6_7 = TBLine(self.cuboid.pt6, self.cuboid.pt7)
tf_sl_7_4 = TBLine(self.cuboid.pt7, self.cuboid.pt4)
self.__face5 = TBFace(tf_sl_4_5, tf_sl_5_6, tf_sl_6_7, tf_sl_7_4)
# bottom face stroke
bf_sl_0_1 = TBLine(self.cuboid.pt0, self.cuboid.pt1)
bf_sl_1_2 = TBLine(self.cuboid.pt1, self.cuboid.pt2)
bf_sl_2_3 = TBLine(self.cuboid.pt2, self.cuboid.pt3)
bf_sl_3_0 = TBLine(self.cuboid.pt3, self.cuboid.pt0)
self.__face6 = TBFace(bf_sl_0_1, bf_sl_1_2, bf_sl_2_3, bf_sl_3_0)
By combining all of the above its possible to render voxels into a Tiltbrush painting, as can be seen in the figure below (left) [_lit hull brush_]. By playing with the color and translation, its possible to build a giant wall of voxels ୧⍢⃝୨, as can be seen on the figure below (right).
We can massage this structure inside TiltBrush and use it as a base for other art. We will revisit this in the future, but the idea is to create primitive brushes that can be used for other paintings!
Surface Deformations

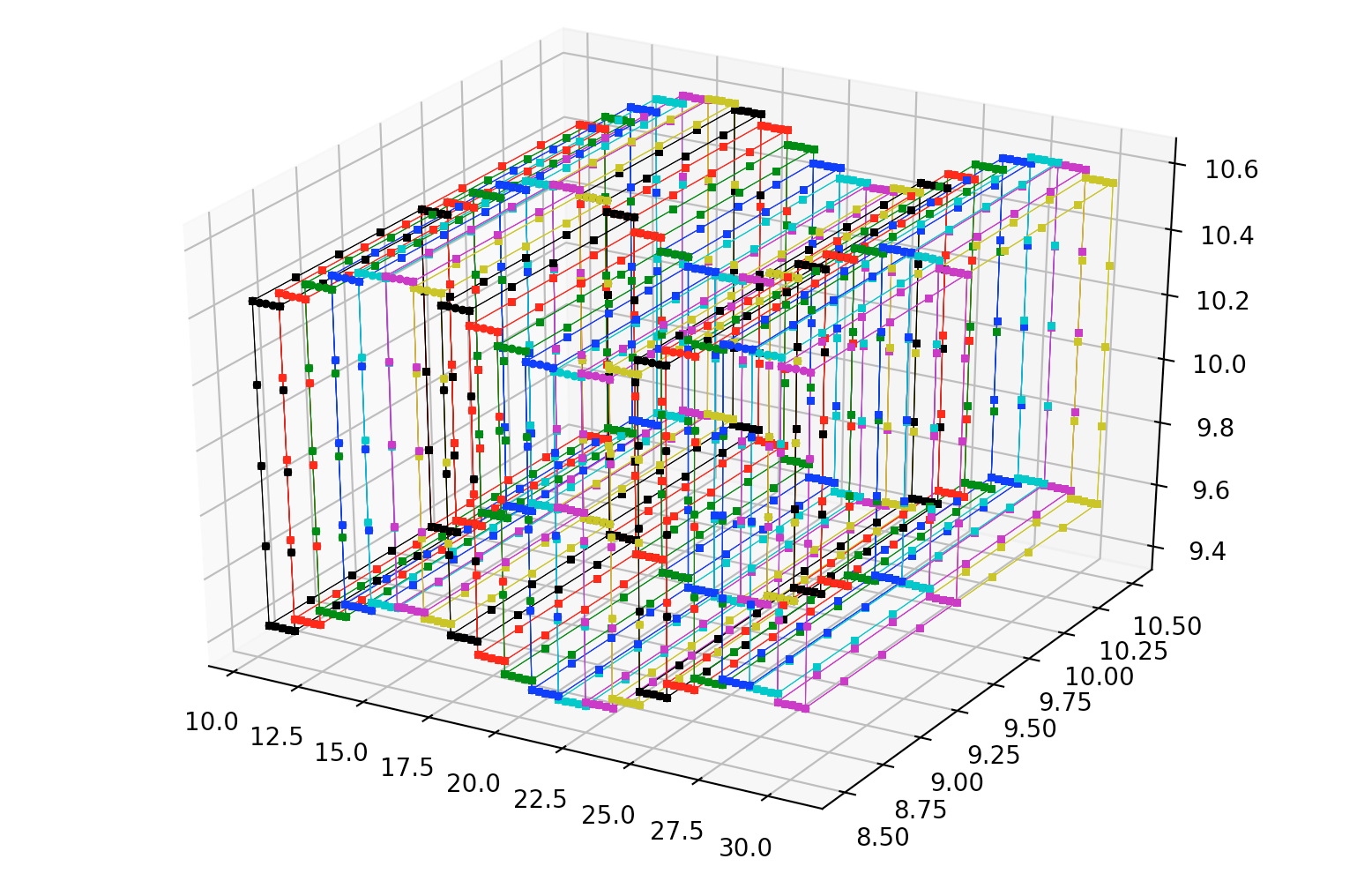

We could print out picture in VR as a flat image, but I wanted to make it a little more interesting. If we pass the position through a _sine_ function we can make it have a nice wave effect on the print.
I hope this gives a taste of what can be done with positions and rotations in the future! Now we have the tools we need to print a picture so lets march forward!!
Bitmaps And PNGs
So next we need to process a source image so that we can print it into virtual reality 👩🏼🎤. When I was thinking about this article initially I thought that it would be a good idea to use the bitmap file format. If you are unaware, bitmap files are quite easy to parse once they are not compressed.

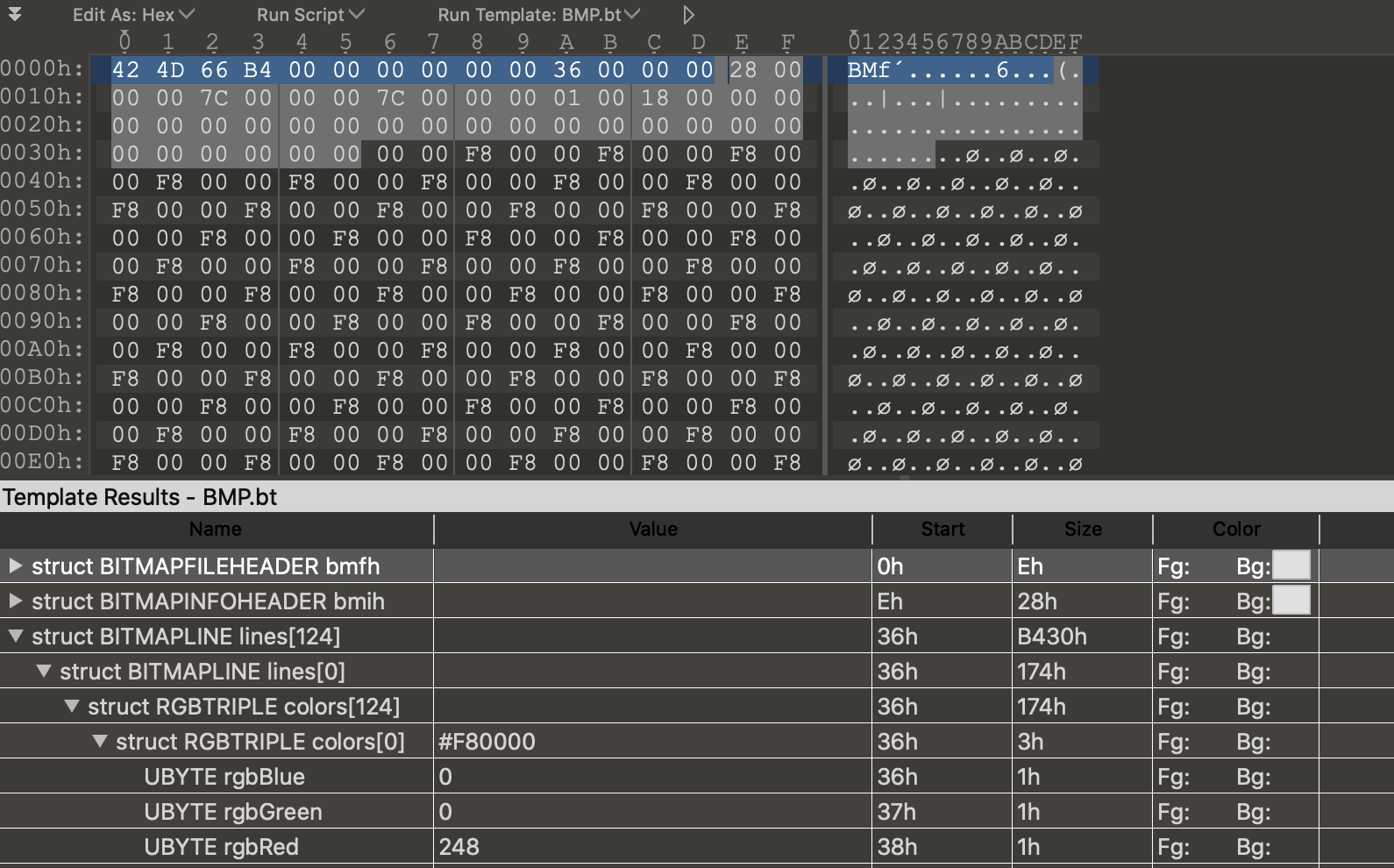

A bitmap file consists of a file header, an info header, and then a series of bytes representing the Red Green and Blue colors (RGB). However, after some thought I decided that this file format is kind of archaeic and not very common online. It also doesn't support an alpha (transparency) channel which I find essential. I really don't want people to need to convert the image file to a different file format before printing it. For this reason I began examining PNG image files instead.

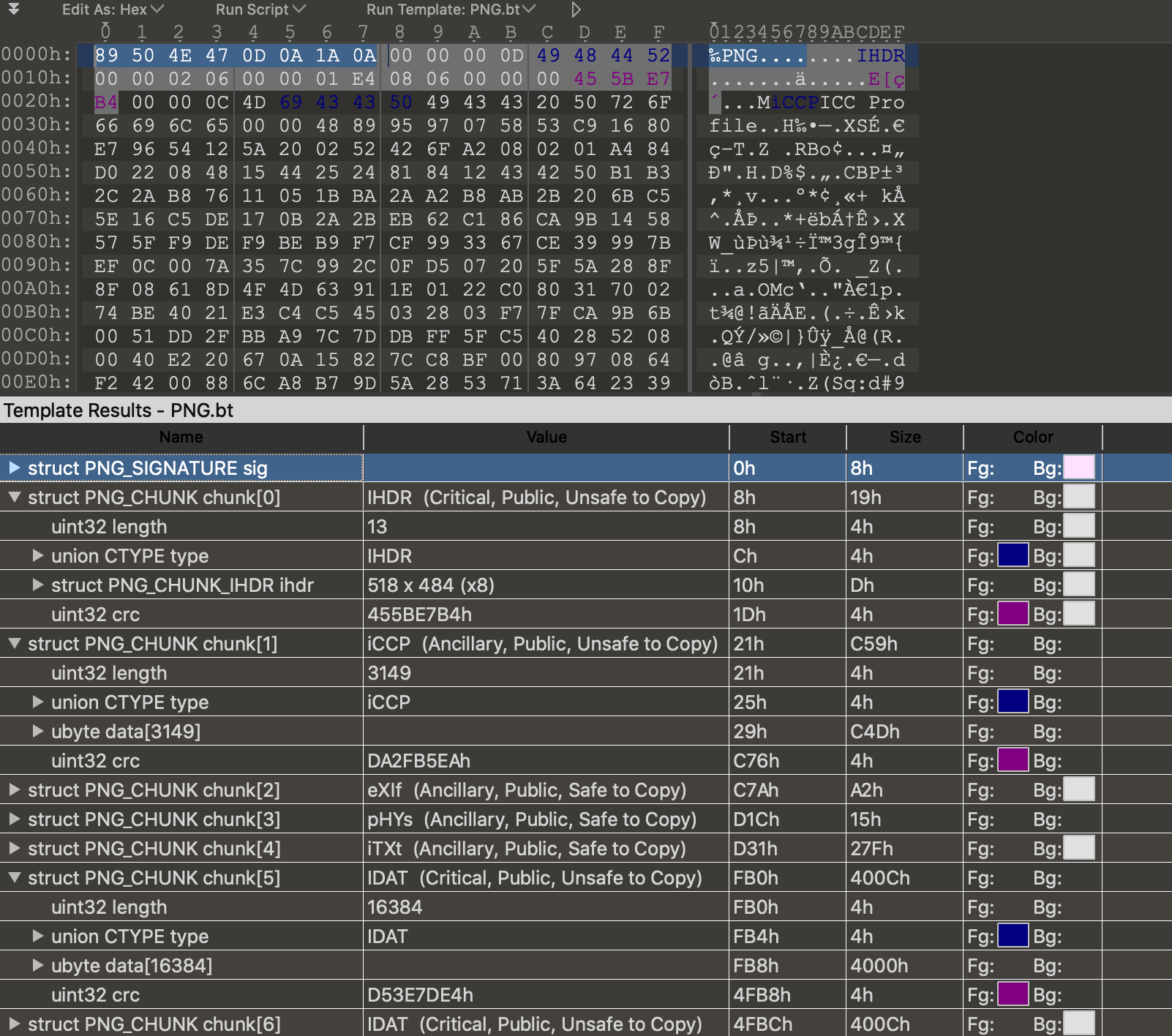

The PNG file structure is definitely more complicated than a Bitmap file. The file starts with a PNG file header:
OFFSET Count TYPE Description
0000h 8 char ID=89h,'PNG',13,10,26,10
But the rest is a series of chunks which consist of _chunk length, a type, data, and a cyclical redundency checksum (crc)_. I began writing a parser from scratch but I think it is outside the scope of the time I allocated to this project so instead I installed ```PIL``` and it made loading a PNG image very easy:
def __load_file(self, f):
if not path.exists(f):
raise FileNotFoundError("File doesn't exist!")
else:
im = Image.open(f, 'r')
self.size = im.size
self.mode = im.mode
self.width, self.height = im.size
self.rows = self.height
self.cols = self.width
_pixels = list(im.getdata())
self.pixels =
[_pixels[i * self.width:(i + 1) * self.width] for i in range(self.height)]
self.initialized = True
We expand on this a little and make a class to hold each pixel as a custom color type. This will allow us to process the pixels easier when rendering into TiltBrush.
class TBColor:
def __init__(self, color=Vec3(0.0, 0.0, 0.0), alpha=1.0, transparency_threshold=0.1):
if color.x > 1.0 or color.y > 1.0 or color.z > 1.0:
raise("Color range is 0.0 -> 1.0")
if color.x < 0.0 or color.y < 0.0 or color.z < 0.0:
raise("Color range is 0.0 -> 1.0")
self.__red = color.x
self.__green = color.y
self.__blue = color.z
self.__alpha = alpha
self.__transparency_threshold = transparency_threshold
self.__is_transparent =
(True if (self.__alpha < self.__transparency_threshold) else False)
@staticmethod
def random():
return TBColor(Vec3(random(), random(), random()))
@property
def r(self):
return self.__red
@property
def g(self):
return self.__green
@property
def b(self):
return self.__blue
@property
def is_transparent(self):
return self.__is_transparent
@property
def a(self):
return self.__alpha
@property
def rgb(self):
return (self.r, self.g, self.b)
@property
def rgba(self):
return (self.r, self.g, self.b, 1.0)
# I don't think alpha works in TiltBrush
Pixel Print
So the next thing we need to do is scan an image into a pixel array, and then plot this image using all of the work we have done above. I found the following image online, it is Creative Commons so I figured it would be ok to use it as an example. Its got a really nice color range! Who doesn't like rainbows? Its got an alpha channel too which was interesting to process.
I loaded the image using our work above, and printed it into a TiltBrush painting. Each pixel is _filled_ using 2 diagonal lines. This is the ```X``` pattern on each pixel that we discussed earlier, it can be seen in the closeup screenshots below.
The code to create the pixels is pretty nice at this point, as a lot of the details are neatly abstracted. It could certainly be improved on though. We can also skip the pixels that are transparent using the ```color.is_transparent``` predicate below.
for row in range(0, ROWS):
print("row %d of %d rows" % (row, ROWS))
for col in range(0, COLS):
position.x += pixel_width
color = tb_img.pixel_at(row, col)
# don't create a pixel if it is transparent
if color.is_transparent:
continue
pixel = TBPixel(position, color, pixel_width, pixel_height)
pixels.append(pixel)
position.y -= pixel_height
position.x = start_position.x

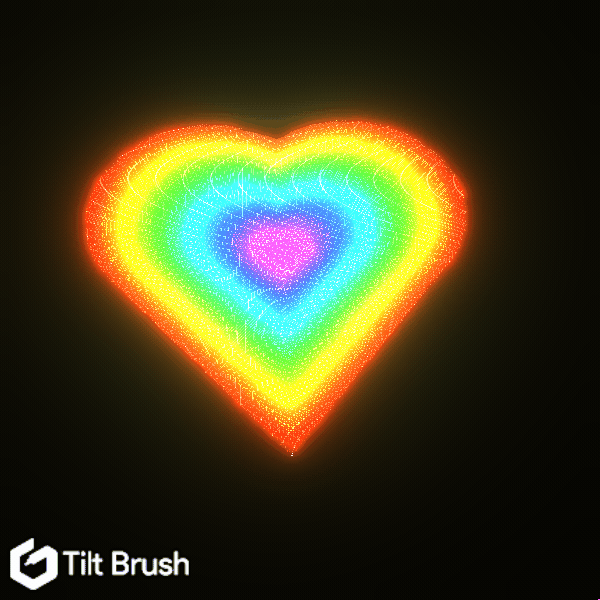

And there we have it, a PNG scanned and printed into VR using Tiltbrush brush-strokes. The image took a while to load, and this is what it looks like in VR!
Note that the bloom on the shader makes the colors wash out and bleed into each other a little, especially the brighter colors like Yellow and Cyan 😄. This is pretty interesting and might make a good topic for a different blog article -- I still think it looks neat ! Also its nice that there is room for improvement. Its also difficult to communicate the size of this heart as it appears in VR, it _feels_ like it is 50 meters tall 😂.
Voxel Print
So next we are going to print a picture using our work on voxel printing above. In this case I made a tiny flag (_ratio 3:5_) using pixel art. The flag is 100 x 60 pixels.
At the moment it is very important to consider the pixel count in the image, because we have not optimized the voxel renderer at all -- and so it prints hidden faces and doesnt merge visible faces. This means that it is not performant at all, for example the image above will produce approximately _36,000_ planes/faces. This in turn will have even more faces rendered by the surface shader that Tiltbrush applies to the brush that we have chosen (lit hull brush.) The flag source image is tiny :

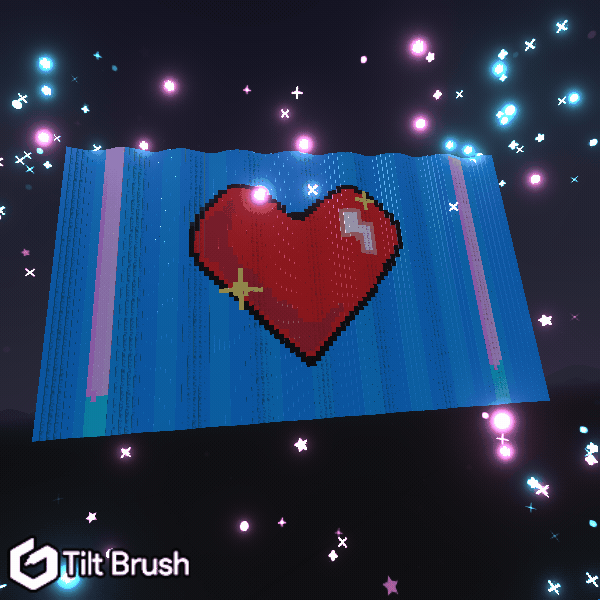

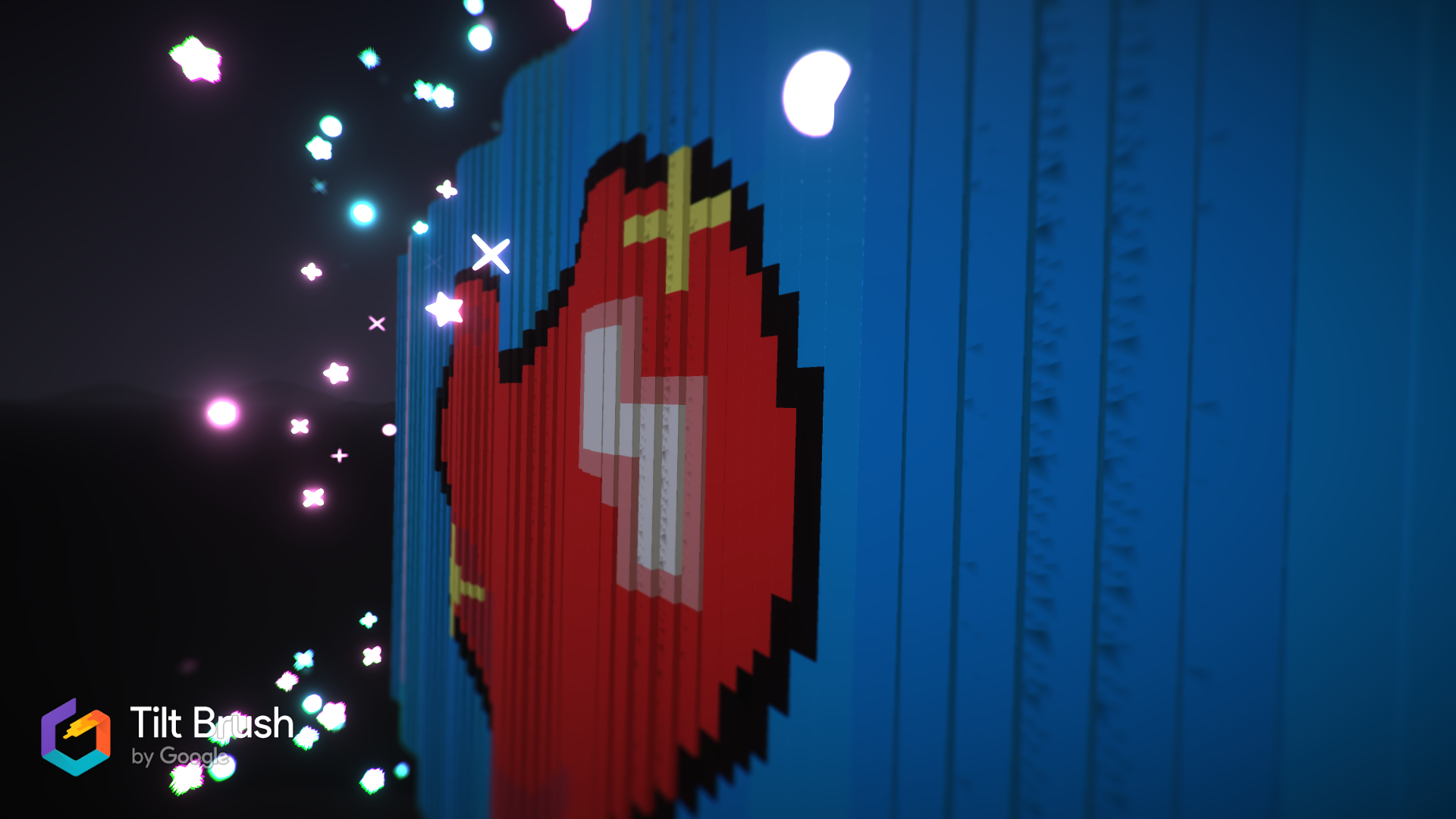

And here it is rendered into a massive Tiltbrush picture with a sine applied to shape the z-axis position of each voxel. It translates pretty well hey? I love how accurate the colors are!
I'm dissapointed that I ran out of time allocated to this article, but the curvature of the flag wave could be drastically improved. Lets revisit this in the future. I still think it looks pretty neat.
Et Voila

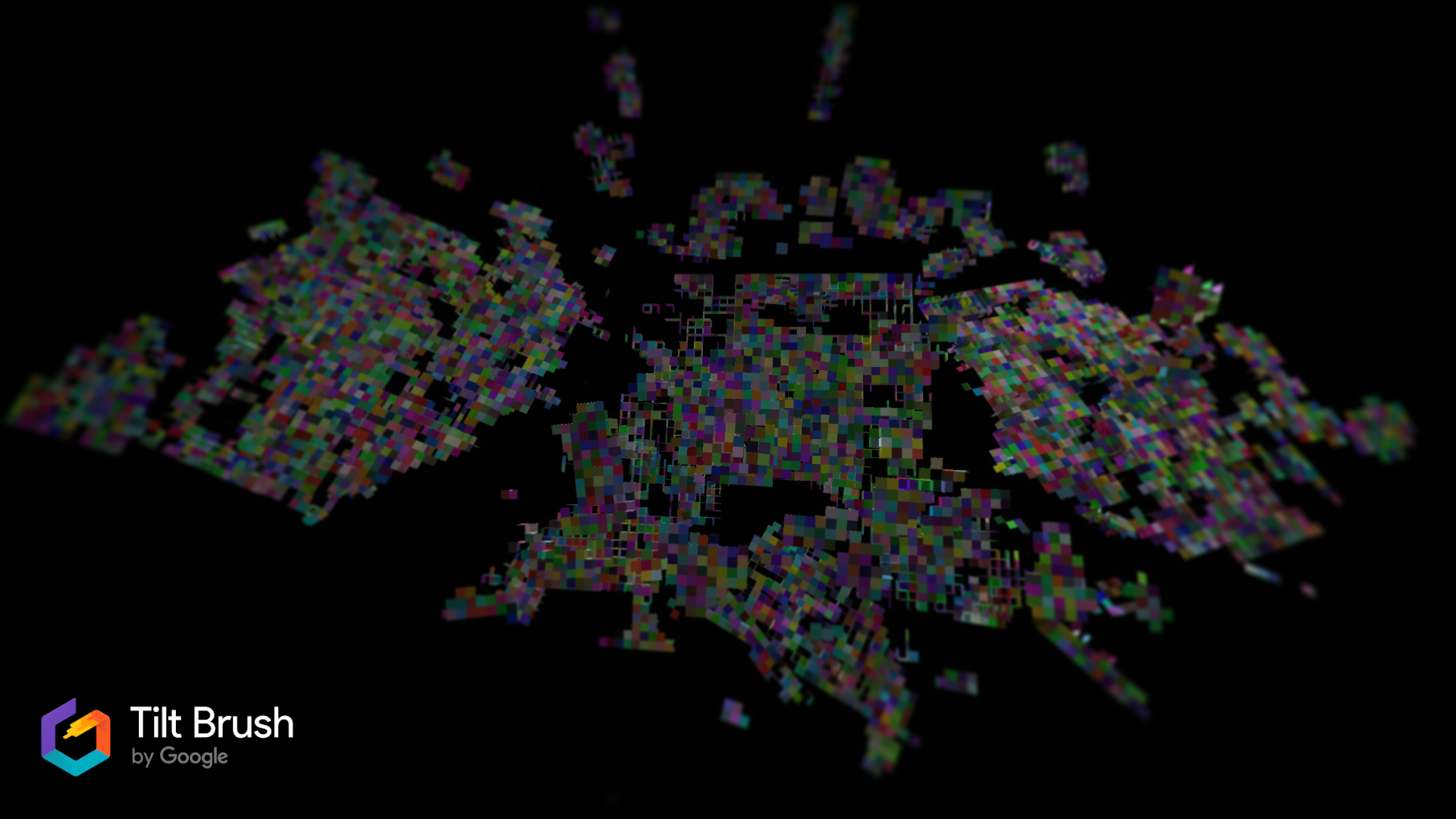

Putting all of the above together and we have some tools to print images into Tiltbrush! Here are the fruits of our labour!
Thanks for spending time with me and for taking the time to read this. I hope it has been fun!
Source is here:
